污泥脫水后效果圖
發布于：2010/6/27 點擊：3476 隸屬于：滾壓式污泥脫水機

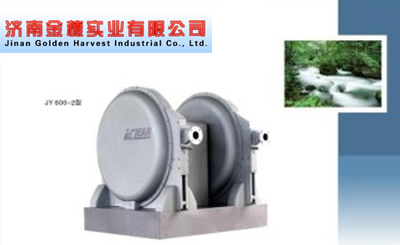

JYQ600-2型螺旋擠壓過濾機
旋轉擠壓過濾機應用領域
1．城市污水，造紙污水；
2．冶煉污水，皮革污水；
3．食品加工污水，釀造污水；
4．制藥污水，化工污泥；
5．餐飲廢物，生物過濾污泥；
6．煤渣、礦渣、石油、牲畜污泥。
Applications
Municipal wastewater treatment; Pulp & paper wastewater treatment; Smelting wastewater treatment; Tannery wastewater treatment; Food and brewery wastewater treatment; Pharmaceutical wastewater treatment; Chemical sludge treatment; Coal residue treatment; Slag treatment; Petroleum sludge treatment and Animal manure treatment.
產品特點
1．構造簡單：啟動、停止時不需要特別的程序，因構造零部件少，運轉、維修管理非常容易。
2．高效脫水性能：與目前其他系列脫水機相比，能得到更低的含水率的脫水濾餅。可通過對機器轉速、進泥量、出口進口壓力的調節，調整濾餅的含水率很容易。
3．大范圍處理量：因增加脫水單元容易，可從單元脫水增加到6個單元脫水，所以能對應大范圍處理量。
4．動力小，能耗低：因機體的旋轉速度緩慢（0.5~1.5轉/分鐘），所需動力也很小，每小時3-8立方污泥處理量的主機電耗只需2.2千瓦/小時。
5．自動控制系統：機器運行從絮凝藥劑溶解到污泥混合攪拌及污泥積壓過濾，整個處理系統采用自動控制系統控制，操作簡便，可減少操作人員，提高工作效率。
6．結構緊湊，占地少：機器的本體直徑（金屬圓盤過濾器直徑）最大為600mm，加之設計中結構緊湊，主機機體小，安裝方便，所占工作場地小。
7．密閉構造：全密閉的構造，污泥臭氣不會外泄，實施污泥臭氣對策容易，作業環境良好。
8．維持管理容易：因本體的旋轉速度緩慢，運行平穩，構造簡單，零部件少等特點，日常維護、保養成本較低。
9．沖洗水量少：金屬制過濾器孔堵塞現象少，沖洗水量少。本機可采用回水沖洗，既可節約水資源，又可防止水資源的二次污染。
Favorable Features
2. Efficient dehydration--- Cake dryness is high. Water-containing rate of the cakes can be adjusted by changing the rotation speed, sludge input, inlet and outlet pressure of the machine. Adjustments to the cake dryness are very easy.
3. Strong Processing capacity--- the dehydration units can be added up to 6.
4. Low energy consumption--- Rotate at 0.5-1.5 rpm 2.2kw/h power consumption for 3-8cubic meter sludge treatment.
5. Automatic control system---easy to operate; fewer workers required; high working efficiency.
6. Compact structure, small footprint, -- of 600mm diameter of the metal disc filter at most; easy to fix and little space taking up.
7. Totally enclosed structure---no smell letting out; no polluting to the working environment.
8. Easy maintenance---low cost of daily maintenance and repair.
9. Little cleaning water consumption---water recycling function enables a second use of the water, which not only saves water but also prevents pollution to the water resource.
7. Totally enclosed structure---no smell letting out; no polluting to the working environment.
8. Easy maintenance---low cost of daily maintenance and repair.
9. Little cleaning water consumption---water recycling function enables a second use of the water, which not only saves water but also prevents pollution to the water resource.
